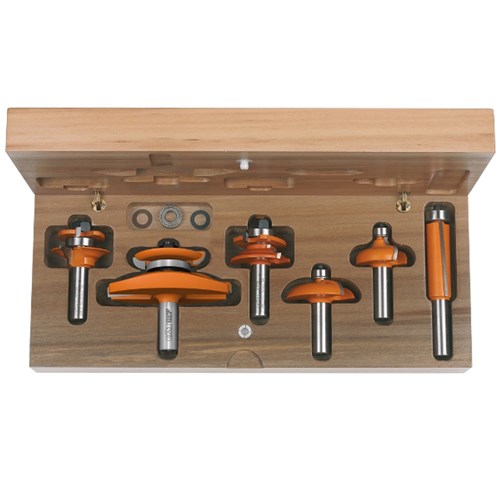

800.520.11 - Achieve a professional looking result with this set, featuring a range of high router bits for each stage of kitchen cabinet door construction.
Included:
- OGEE RAIL & STILE BITS: these two perfectly matched tools will eliminate the frustration of setting up reversible cutters. The stile bits also feature shear angles for neater cuts.
- RAISED PANEL BIT WITH BACKCUTTER: this 89mm diameter bit features a backcutter for milling both the front and the back on the panel without the need to do the front and back separately. It is recommended that shallow passes be done using cutters like this, both for safety, and to extend the life of the cutter.
- SUPER-DUTY FLUSH TRIM BIT: this 19mm diameter bit gives you a superior cut with minimal chipping, even on end grain.
- OGEE DOOR EDGE BIT: a subtle cove followed by a subtle roundover adds an elegant touch to your door edge.
- DRAWER FRONT BIT: this bit makes a mini-raised panel cut on the outside edges of your drawer fronts.
Please refer to the illustrations for complete profile and dimensions.
Tip: When using raised panel bits, rather than moving the router table constantly after each shallow pass, cut several 3mm shims of MDF or similar material to fit against the router table fence. This will limit the amount of material that can be removed in any one pass, and minimise the amount of fence adjustments needed.
Safety tips: the larger bits should be used between 10.000 and 12.000 RPM, three to five passes recommended. To be used with routers with at least 1700W (2-1/4 HP).
