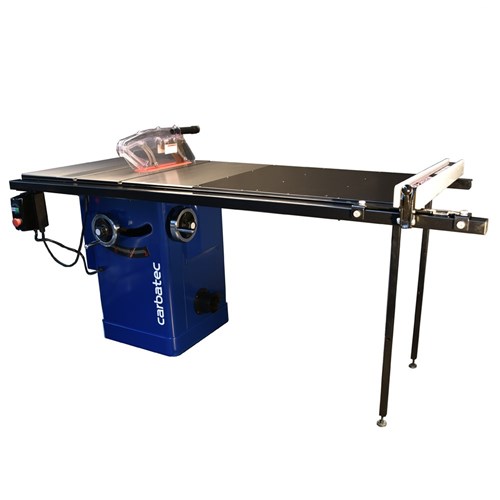

Carbatec Professional 250mm Cabinet Saw with 50" T-Glide Fence Kit

Product Code: TS-C250P-50TG

$2469 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • 10” (250mm) Left tilting blade for superior safety
  • Abundant power from the 2.5HP (1875W) Induction motor.
  • 10A power plug, no special wiring required in your workshop.
  • Fully enclosed cabinet and considerable internal dust shrouding.
  • Quality adjustable mitre gauge with crosscut face with flip stop.
  • Dado capable, with supplied with dado table insert
  • Clear blade guard that is highly dust collection efficient
  • Quick release tool free riving knife with included Low Profile riving knife
  • 2 year warranty
  • NOTE: Requires a 10"/250mm Blade (see blelow)

Carbatec has been the choice for woodworkers for many years, and now introduce a new range of 10” cabinet saws. These tablesaws have been designed with quality, stability and ingenuity in mind.

Coming in at a hefty 2.5HP, it is more than powerful enough to drive a dado stack up to 19mm wide, and with its 10amp power supply, no special wiring is required in your workshop.

Safety is always our highest priority, so a left tilting blade means it tilts away from the fence, so will not trap an offcut when cutting at angles other than 90°. The riving knife moves up and down with the blade, so when fitted with the included low profile knife, it is always below the level of the blade, allowing for trenching style cuts, yet is always there for that added safety. The mitre gauge features an extended fence and flipstop, making for safe cross cutting and repeatability.

The overhead guard being clear, allows the operator to see what is happening during the cutting process, and this highly efficient guard offers suction right where the dust is being created.

A Magnetic NVR Switch is located at the front of the saw, located so that it is easily accessible to the operator. The NVR switching cuts power to the saw in the event of power failure.

A fully enclosed cabinet base makes for a stable machine, housing the heavy duty saw chassis, trunnions, and dust collection via the 4” dust port.

50” This model features a traditional Heavy Duty Steel Biesemeier style Tglide Lever Lock Fence with HDPE faces that offer little resistance for the workpiece. 50” rails give a cut capacity 780mm

Cast Iron Table Depth - 685mm
Cast Iron Table Width - 1020mm
Table Length with Solid Phenolic Insert - 1820mm(With Additional Support Legs)

Brand Carbatec
Motor 1875W (2-1/2 HP) Induction - Regular 10A Plug
Switch Type Magnetic Switch NVR
Blade Diameter 250mm
Arbor Diameter 5/8"
Maximum Cut At 45° 57mm
Maximum Cut At 90° 82mm
Blade Guard Clear with High Efficiency Extraction
Blade Tilt Left
Cut Dimensions (rip) 1260mm
Dado Capable 19mm Maximum
Drive Type Single Belt
Dust Port 1 x 4"
Riving Knife Style Quick Release Riving Kinfe and Low Profile Knife
Table Height 860mm
Workshop Footprint (WxDxH) 2080mm x 980mm x 1060mm
Warranty Period 2 Years
Stand Type Enclosed Cabinet
Shipping Weight 214Kg
This item contains the following component products
Product Code
Description
Quantity included
TS-C250P
CARBATEC 250MM PROFESSIONAL CABINET SAW (BODY ONLY) NEW MODEL
1
TS-C250P-50FRR
CARBATEC 250MM PROFESSIONAL 50IN F+R RAILS WITH SIDEBOARD NEW MODEL
1
TS-C250P-TGLIDE
CARBATEC 250MM PROFESSIONAL TGLIDE TYPE FENCE ONLY NEW MODEL
1
