CMT Kitchen Jig

Product Code: CMT650

$356 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • Template made of stable and hardened material
  • For 90° and 45° joints
  • Integrated templates for rounding over and chamfering edges
  • Extra location bush for worktop width of 600mm
  • Two integrated templates for panel bolt recesses
  • Delivered with a clear and comprehensive instruction manual

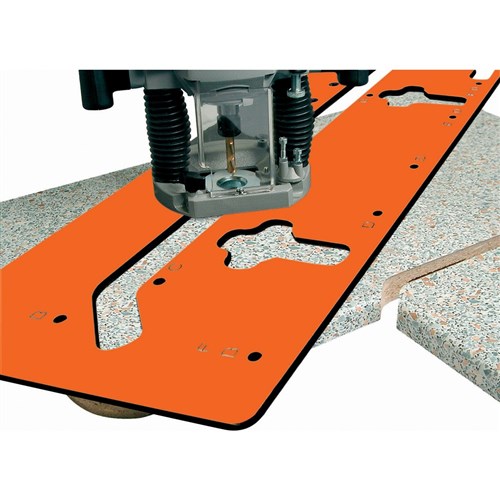

The CMT650 Template Jig is designed for joining kitchen bench tops at 45° and 90° in sizes from 420mm to 650mm. Made from stable phenolic resin so is thick enough to be stable, and not lose depth of cut with the router bit.

The template also has facility for routing panel bolt recesses so that hardware can be fitted in minutes, these recesses are for joining the two benchtops together.

Can be used with either of two cutters listed below - CMT straight cutter 812-620-11 is suitable for tops up to 32mm thick, CMT replaceable tip cutter 652-621-11 is suitable for tops up to 50mm thick, with the replacement cutter being 790-500-01.

Weight: 4.3Kg.

Jig Includes:

  • 1 phenolic template.
  • 3 zinc-coated steel location bush.
  • 1 adjustable end stop.
  • 1 instruction manual.

Jig Requires:

  • 1/2” router
  • Ø30mm guide bush
  • Ø12mm straight bit
  • Two clamps to hold the jig from moving.




Brand CMT
