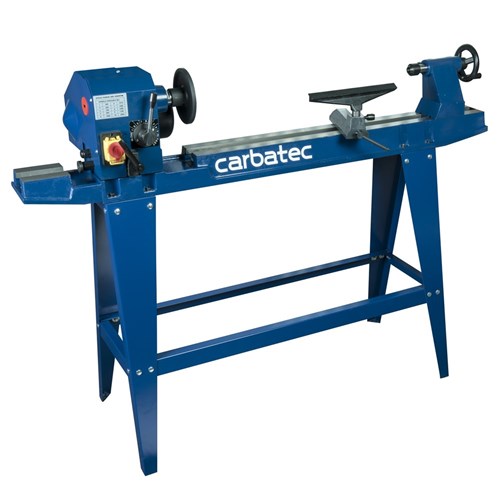

Carbatec Economy 900mm Variable Speed Wood Lathe

Product Code: WL-900H

$799 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • 3/4HP induction motor
  • Split pulley system produces variable speed range
  • MT2 morse taper
  • M30 x 3.5 spindle thread
  • 10mm hole through headstock

This great entry level, full sized lathe has several Carbatec enhancements over the standard factory model.  The Aluminium finned motor runs cooler over longer periods compared to a standard non-finned motor and our widely accepted  30x 3.5mm thread spindle size is 40% larger in cross section than the standard factory 1"x 10 TPI.  Most of our lathes and accessories utilise this heavier 30x 3.5mm spindle thread size, or larger.

Perfect for the beginning or budget-conscious woodturner.

The speed is variable via a split pulley system that allows the spindle to run between 500 to 2000 rpm. While the motor is running, turn the handle, allowing the pulleys to separate giving a different belt ratio, therefore changing the speed of the spindle. This is done easily and is an economical way to produce variable speed. The headstock can be rotated an impressive 360°, with 4 locking positions, allowing outboard turning. The cast iron bed has a smooth ground surface allowing the banjo and tailstock to move easily along its length. For outboard turning you will need to reposition the banjo and tool rest accordingly.

Both the headstock and tailstock have a No. 2 morse taper, allowing popular turning accessories to be used.

This unit also includes pressed metal legs with pressed metal tool tray, 300mm tool rest with two piece articulated banjo, face plate, drive centre, revolving centre and hollow tailstock. All the kit you need to get started in the rewarding hobby of woodturning. A reliable motor is supplied with alloy-constructed cooling fins to provide cooler running.

Brand Carbatec
Motor 560W (3/4 HP) Induction - Regular 10A Plug
Tool Post Diameter 25mm
Headstock Movement Swivels
Hole Through Spindle/Tailstock 9mm
Indexing Positions None
Max Distance Between Centres 840mm
Morse Taper MT2
Spindle Thread M30 x 3.5
Swing Over Bed Capacity 300mm
Workshop Footprint (WxDxH) 1600mm x 400mm x 1120mm
Speed Adjustment Variable Speed Lever
Speed Range (RPM) 500 - 2000
Warranty Period 1 year
Shipping Weight 85Kg
Nett Weight 80Kg
